OTC DW300 鋁焊機零部件詳細目錄

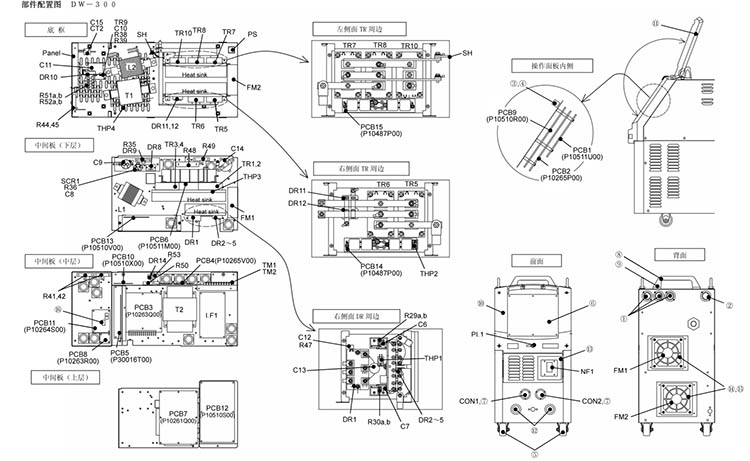

我們先來看一下 OTC Daihen (歐地希) 鋁焊機 DW300 零部件的配置圖。
| 序號 | 配件符號 | 名稱 | 型號 | 規格 | 數量 |
|---|---|---|---|---|---|
| 1 | NF1 | 空氣開關 | 4614-109 | IELK111-34459-1-V | 1 |
| 2 | LF1 | 濾波器 | 4519-036 | FS5681-50-99 | 1 |
| 3 | PL1 | 指示燈 | 4600-360 | N46010A7KW-01 | 1 |
| 4 | DR1 | 三相整流橋 | 4531-716 | DFA100BA160 | 1 |
| 5 | DR2?5,8 | 快速二極管模塊 | 4531-308 | DBA200UA60 | 5 |
| 6 | DR9 | 二極管 | 4531-505 | S2L60 | 1 |
| 7 | DR10?12 | 快速二極管模塊 | 4531-308 | DBA200UA60 | 3 |
| 8 | DR14 | 整流橋 | 4531-120 | D5SB60 | 1 |
| 9 | TR1?4 | IGBT模塊 | 100-0003 | CM150-DU-24NFH | 4 |
| 10 | TR5?8 | IGBT模塊 | 4534-531 | CM400DY-12NF | 4 |
| 11 | TR9 | IGBT | 4534-402 | 1MBH50D-060 | 1 |
| 12 | TRIO | IGBT模塊 | 4534-531 | CM400DY-12NF | 1 |
| 13 | SCR1 | 可控硅模塊 | 4530-137 | SG25M60 | 1 |
| 14 | CT1 | 電流互感器 | 4810-030 | W-W03029 | 1 |
| 15 | CT2 | 霍爾元件 | 4406-009 | HA400S3I-H | 1 |
| 16 | T1 | 逆變變壓器 | P10511B00 | P10511B00 | 1 |
| 17 | LI | 輸入電抗器 | P10264L00 | P10322L00 | 1 |
| 18 | L2 | 直流電抗器 | P10510C00 | P10510C00 | 1 |
| 19 | L3,4,6,12,21 | 鐵氧磁芯 | 4739-497 | E04RA400270150 | 5 |
| 20 | L7 | 鐵氧磁芯 | 4739-497 | E04RA400270150 | 1 |
| 21 | L10,11,13,14,24 | 鐵氧磁芯 | 4739-543 | E04RA310190100 | 5 |
| 22 | L18 | 鐵氧磁芯 | 4739-358 | RI-17.5-28.5-10.7 | 1 |
| 23 | L23 | 扣片濾波器 | 4739-579 | ZCAT-3035-1330 | 1 |
| 24 | THP1 | 溫控開關 | 4614-040 | 67L085 | 1 |
| 25 | THP2 | 溫控開關 | 4614-057 | 67L080 | 1 |
| 26 | THP3 | 溫控開關 | 4258-051 | 67L090 | 1 |
| 27 | THP4 | 溫控開關 | 4253-024 | US-602SXTTAS | 1 |
| 28 | FM1,2 | 風機 | P30016L00 | P30016L00 | 2 |
| 29 | SH | 分流器 | 4403-116 | KY400A400A/60mV | 1 |
| 30 | R1?4 | 壓敏電阻 | 1EG191-11400 | ENC911D-14A | 4 |
| 31 | R7?12 | 碳膜電阻 | 4509-704 | RD1/4Wlk^J | 6 |
| 32 | R13?20,43 | 碳膜電阻 | 4508-317 | RD1/2W3kQJ | 9 |
| 33 | R29a,b?30a,b | 金屬膜電阻 | 4509-121 | RNP-50SC10QF | 4 |
| 34 | R35 | 水泥電阻 | 4509-916 | T20SH2.2QJA | 1 |
| 35 | R36,38,47 | 碳膜電阻 | 4509-704 | RD1/4Wlk^J | 3 |
| 36 | R39 | 繞線電阻 | 4504-944 | KNP1W10Q | 1 |
| 37 | R41,42 | 水泥電阻 | 4509-922 | 20SH10QJA | 2 |
| 38 | R44,45,46 | 金屬氧化膜電阻 | 4509-128 | RS2B-200k〇J | 3 |
| 39 | R48 | 水泥電阻 | 4509-918 | 40SII200QJA | 1 |
| 40 | R49,50 | 水泥電阻 | 4509-825 | 20SH15kQJA | 2 |
| 41 | R51a,b?R52a,b | 扁平繞線電阻 | 4504-325 | NCRF24V20QJ | 4 |
| 42 | R53 | 金屬氧化膜電阻 | 4509-109 | RS1B51k〇 | 1 |
| 43 | C6,7 | 薄膜電容 | 4518-528 | US20X103JAASA | 2 |
| 44 | C8 | 薄膜電容 | 4518-402 | 0.47hF50V | 1 |
| 45 | C9 | 鋁電解電容 | 4511-510 | LWA2N601MSMAZO | 1 |
| 46 | CIO | 薄膜電容 | 4518-497 | DHS630V103JSL | 1 |
| 47 | Cll | 薄膜電容 | 4518-411 | EM351200D0B1HP | 1 |
| 48 | C12 | 薄膜電容 | 4518-402 | 0.47nF50V | 1 |
| 49 | C13 | 薄膜電容 | 4518-530 | US16X154JAASA | 1 |
| 50 | C14 | 鍆電解電容 | 4511-251 | WW02212 | 1 |
| 51 | C15 | 陶瓷電容 | 4517-401 | O.OlnF2kV | 1 |
| 52 | CONI | 金屬插座 | 4730-421 | HS25R-10 | 1 |
| 53 | CON2 | 金屬插座 | 4730-426 | 25-6BK | 1 |
| 54 | PS | 扭力開關 | 4255-016 | W-W00032 | 1 |
| 55 | TM1 | 端子臺 | 4739-616 | TB10-018P | 1 |
| 56 | TM2 | 端子臺 | 4739-505 | TB10-0112P | 1 |
| 57 | PCB1 | 線路板 | P10511L | P10511U00 | 1 |
| 58 | PCB2 | 線路板 | P10265P | P10265P00 | 1 |
| 59 | PCB3 | 線路板 | P10263Q | P10263Q00 | 1 |
| 60 | PCB4 | 線路板 | P10265V | P10265V00 | 1 |
| 61 | PCB5 | 線路板 | P30016T | P30016T00 | 1 |
| 62 | PCB6 | 線路板 | P10511M | P10511M00 | 1 |
| 63 | PCB7 | 線路板 | P10261Q | P10261Q00 | 1 |
| 64 | PCB8 | 線路板 | P10263R | P10263R00 | 1 |
| 65 | PCB9 | 線路板 | P10510R | P10510R00 | 1 |
| 66 | PCB10 | 線路板 | P10510X | PI0510X00 | 1 |
| 67 | PCB11 | 線路板 | P10264S | P10264S00 | 1 |
| 68 | — | 繼電器 | 4341-308 | G6B-1114P-FD-USDC24V | 1 |
| 69 | PCB12 | 線路板 | P10510S | P10510S00 | 1 |
| 70 | PCB13 | 線路板 | P10510V | P10510V00 | 1 |
| 71 | PCB14 | 線路板 | P10487P | P10487P00 | 1 |
| 72 | PCB15 | 線路板 | P10487P | P10487P00 | 1 |
| 73 | ① | 附膜橡膠堵 | 4739-474 | W-W02805 | 1 |
| 74 | ② | 附膜橡膠堵 | 4739-604 | C-30-SG-32A | 1 |
| 75 | ③ | 旋鈕 | 4735-038 | K-10022RSB | 1 |
| 76 | ④ | 蓋 | 4735-039 | K-10022CSBL | 1 |
| 77 | ⑤ | 滾輪 | 4739-516 | 420SR-RD50 | 1 |
| 78 | ⑥ | 操作面板 | P10562W02 | P10562W02 | 1 |
| 79 | ⑦ | — | 4739-476 | W-W02814 | 1 |
| 80 | ⑧ | 把手 | P5801G03 | P5801G03 | 2 |
| 81 | ⑨ | 墊套 | P10263G12 | P10263G12 | 4 |
| 82 | ⑩ | 前蓋板 | P10261J01 | P10261J01 | 1 |
| 83 | ? | 操作面板罩 | P10263J02 | P10263J02 | 1 |
